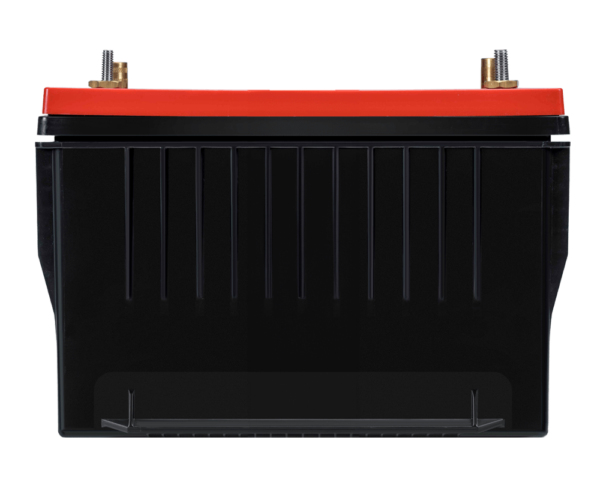

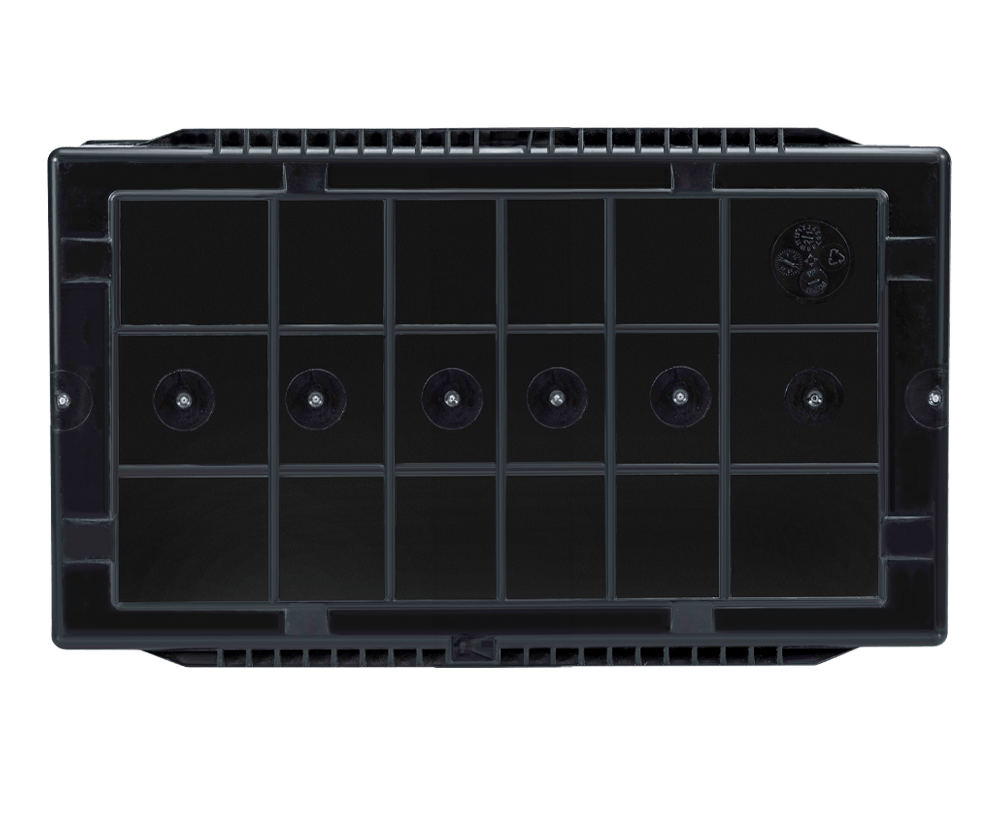

Additional Images

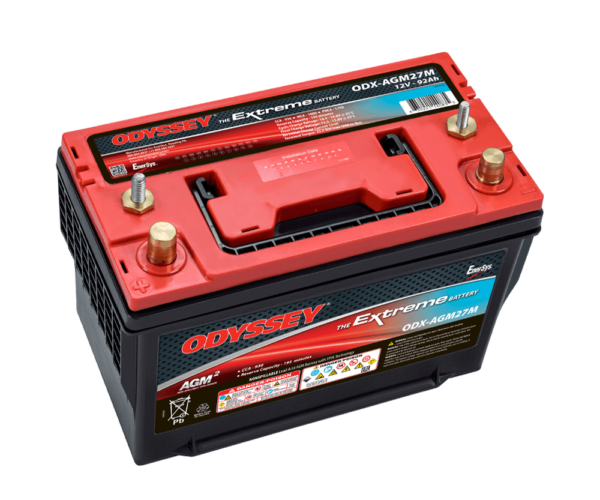

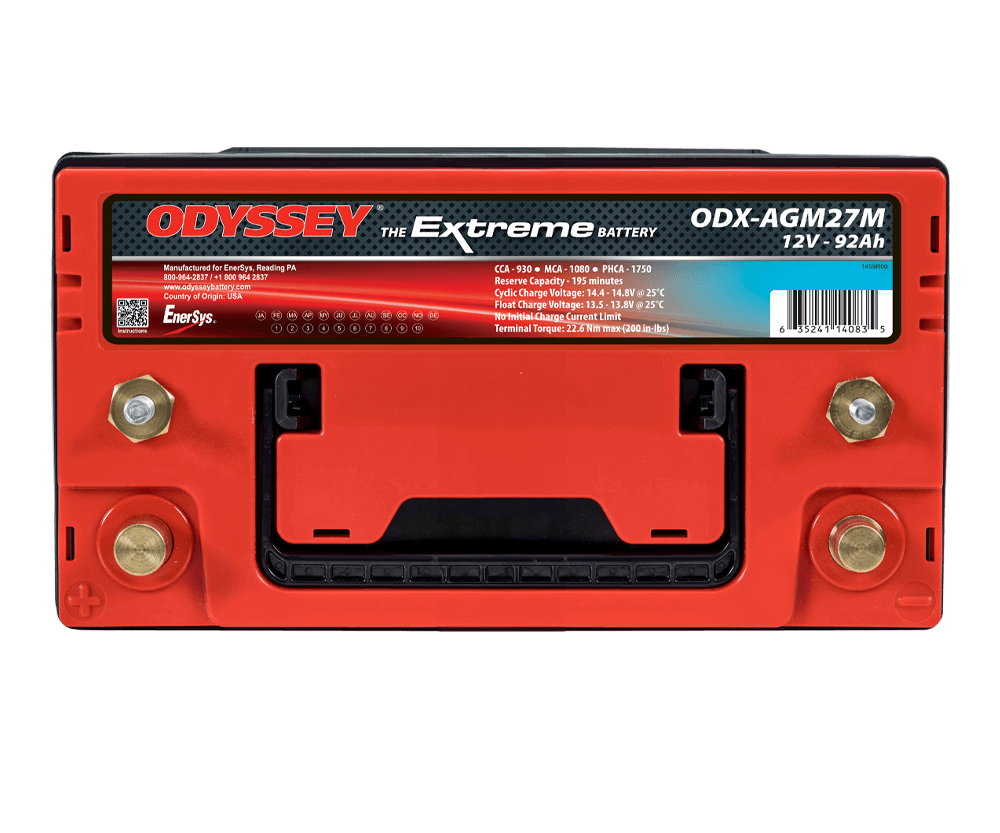

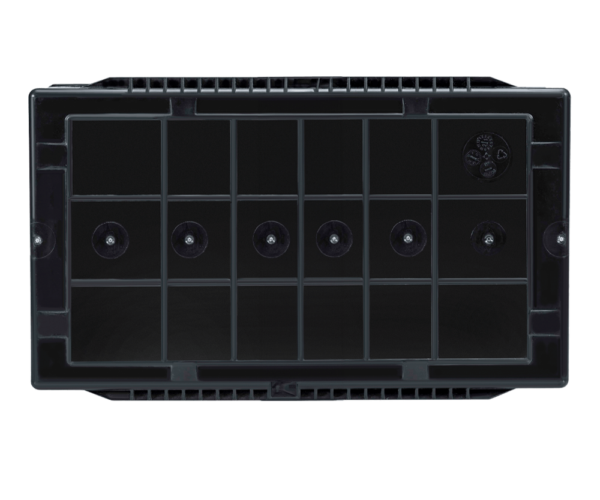

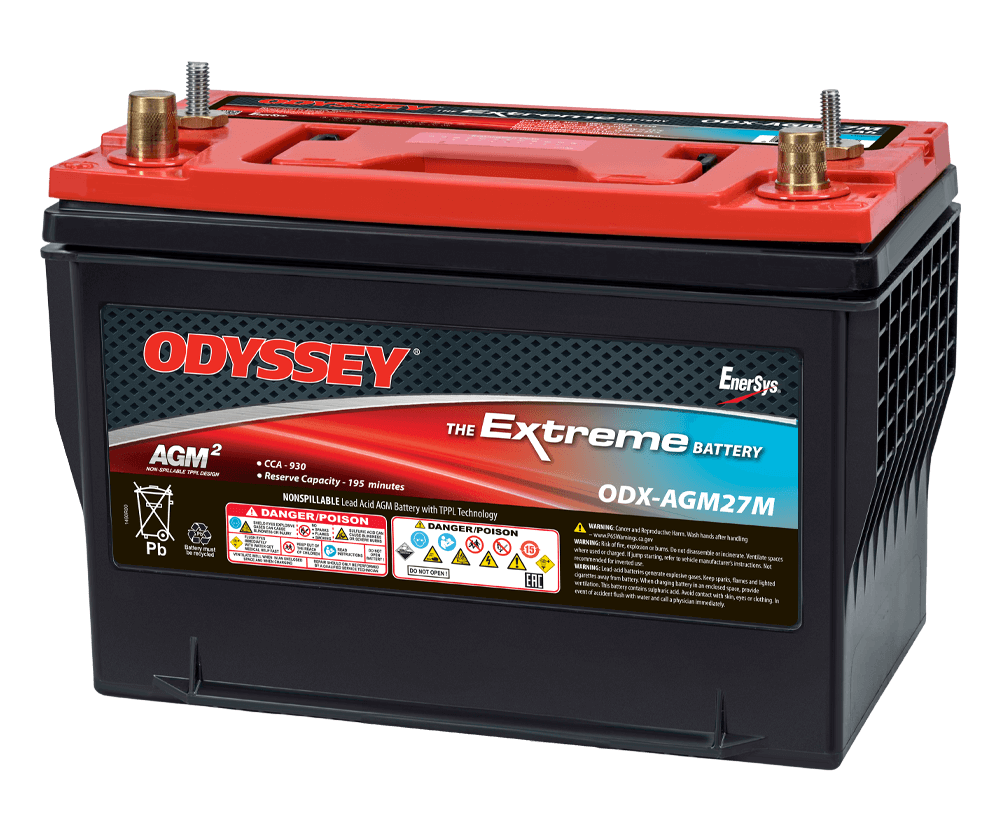

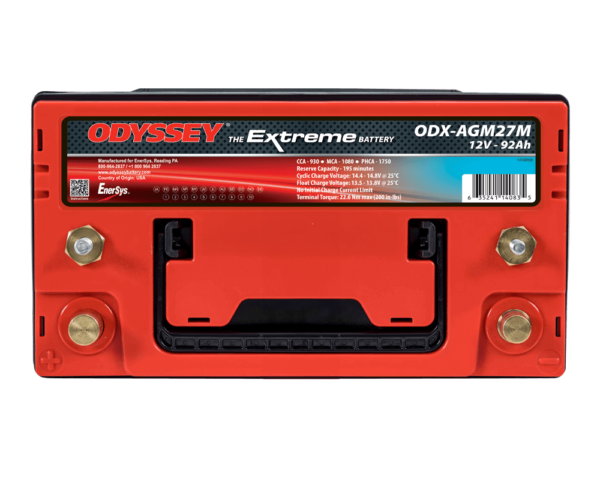

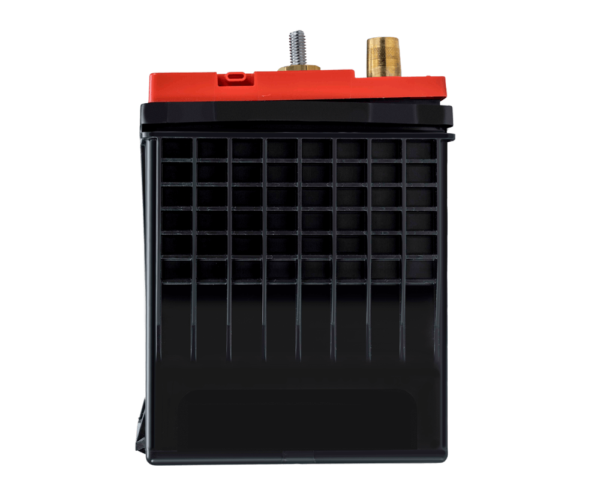

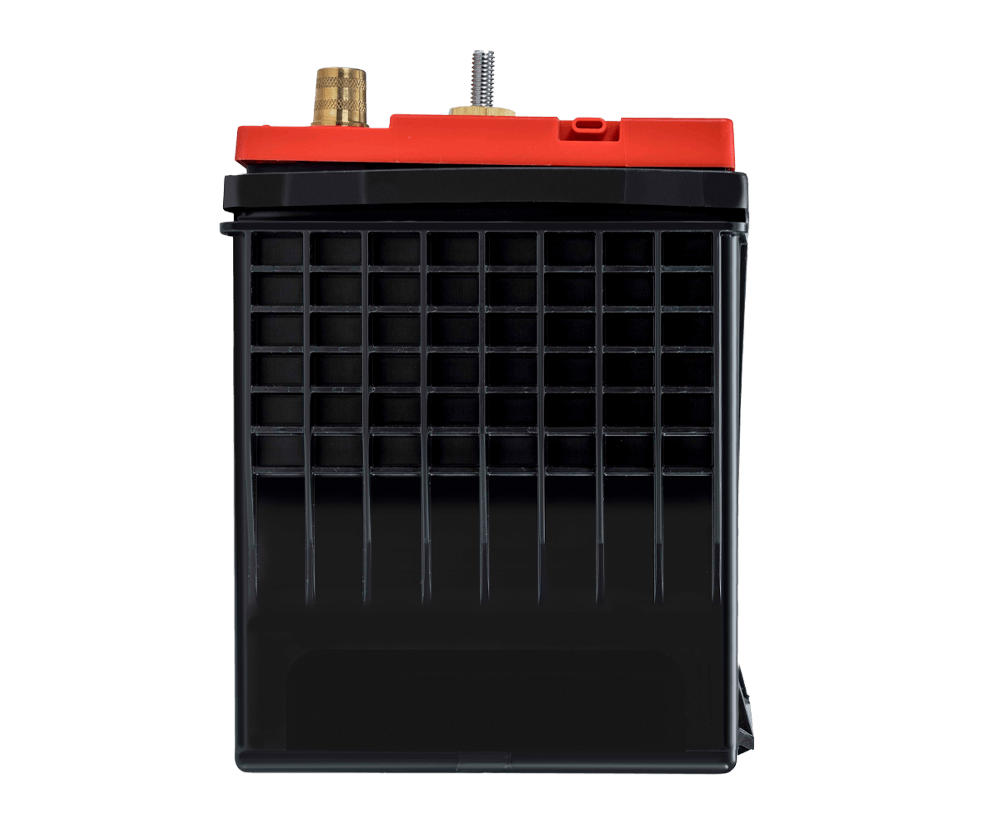

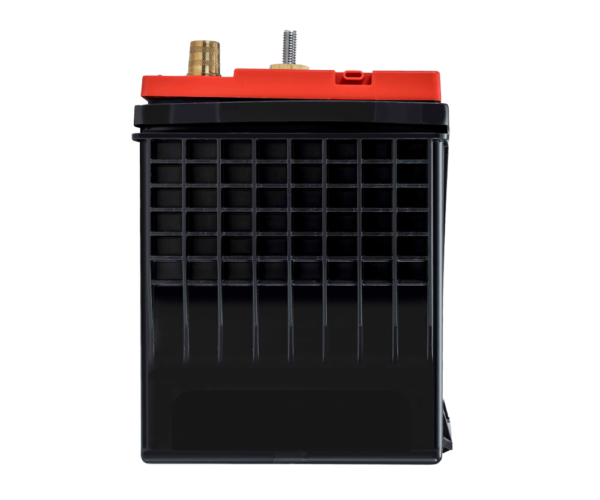

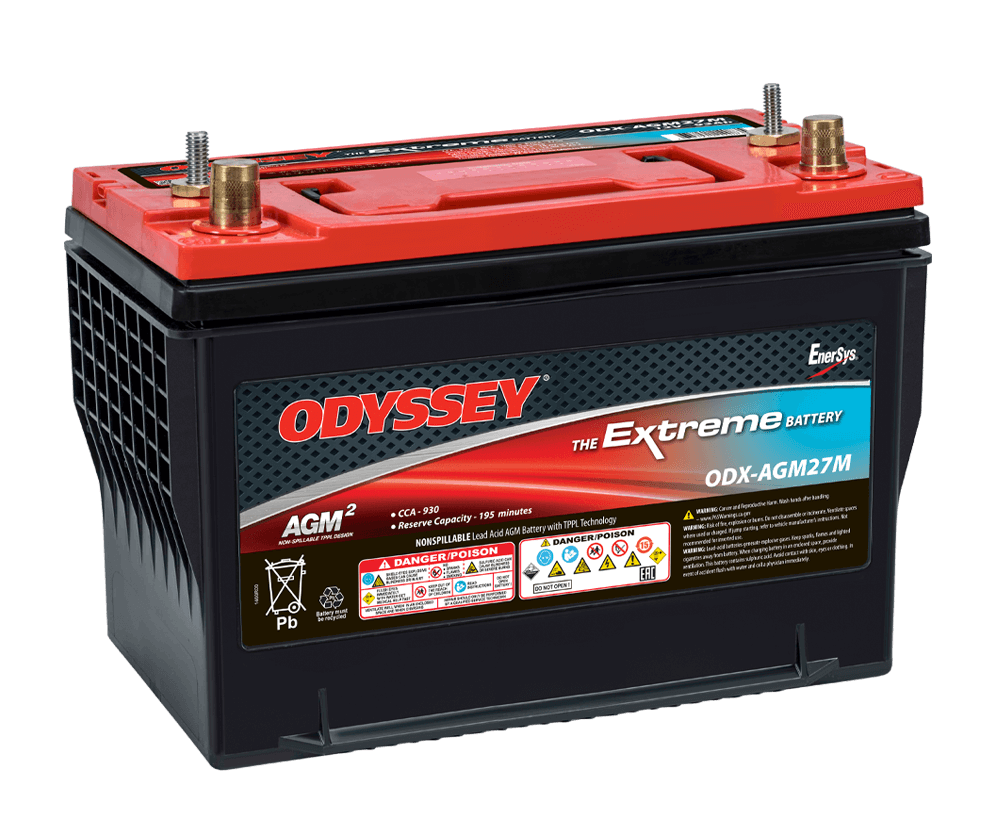

ODYSSEY Extreme Battery

ODX-AGM27M

(NSB-AGM27M)

ODYSSEY Extreme marine batteries excel at providing high vibration resistance, with the high cranking amps and reserve capacity that watercraft demand.

  • Pure lead AGM technology delivers exceptional CCA ratings and reserve capacity cycling ability
  • Quick starting every time
  • Cycles over 900 times at 50% depth of discharge
  • Faster recharge than conventional batteries
  • Proudly made in the USA at our state-of-the-art battery plant
  • OEM fit is ensured – built to exact BCI standards
  • Housed in advanced plastics for durability performance and heat resistance
  • Advanced AGM construction means no water levels to check or terminals to clean
  • Approved as non-hazardous cargo for ground sea and air transport DOT 49CFR173.159(d), (i) and (ii)
SAE Metric

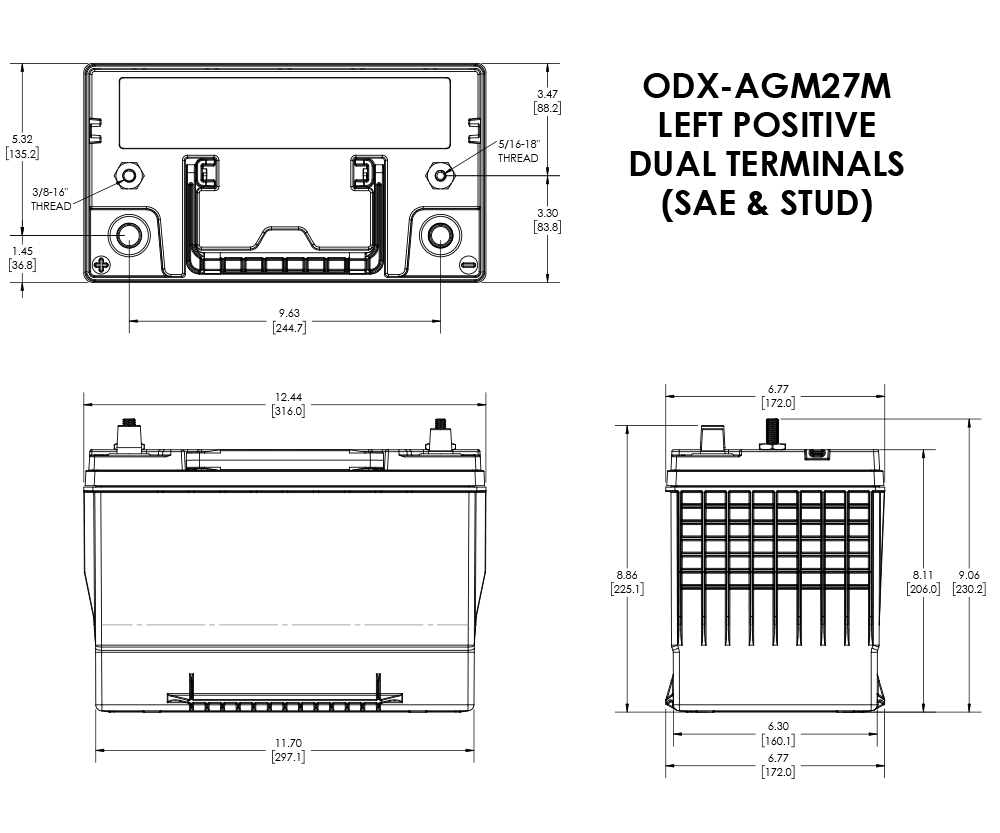

Dimensions

Length 12.5 in
Width 6.8 in
Height (terminals included) 8.8 in
Height (container) 8.2 in
Weight 67.9 lbs

Specifications

12

1750

1600

1325

930

1290

1080

92

88

195

SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.)

200 (22.6)/100 (11.3) studs only

2.6

5000

8.8

-40°F / -40°C to 176°F / +80°C

68°F / +20°C

635241140835

Download 3D CAD Files (Zip File)
