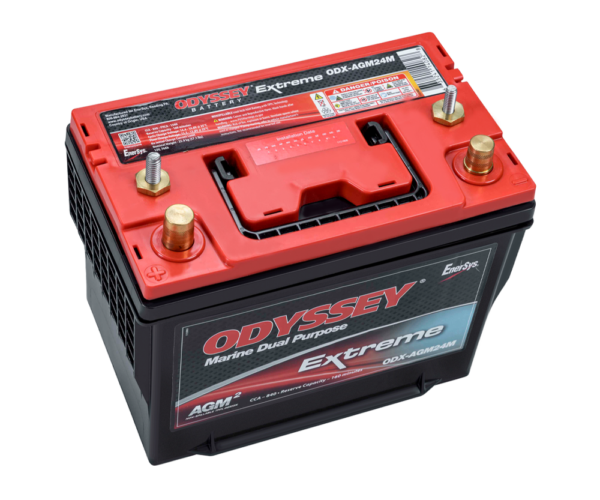

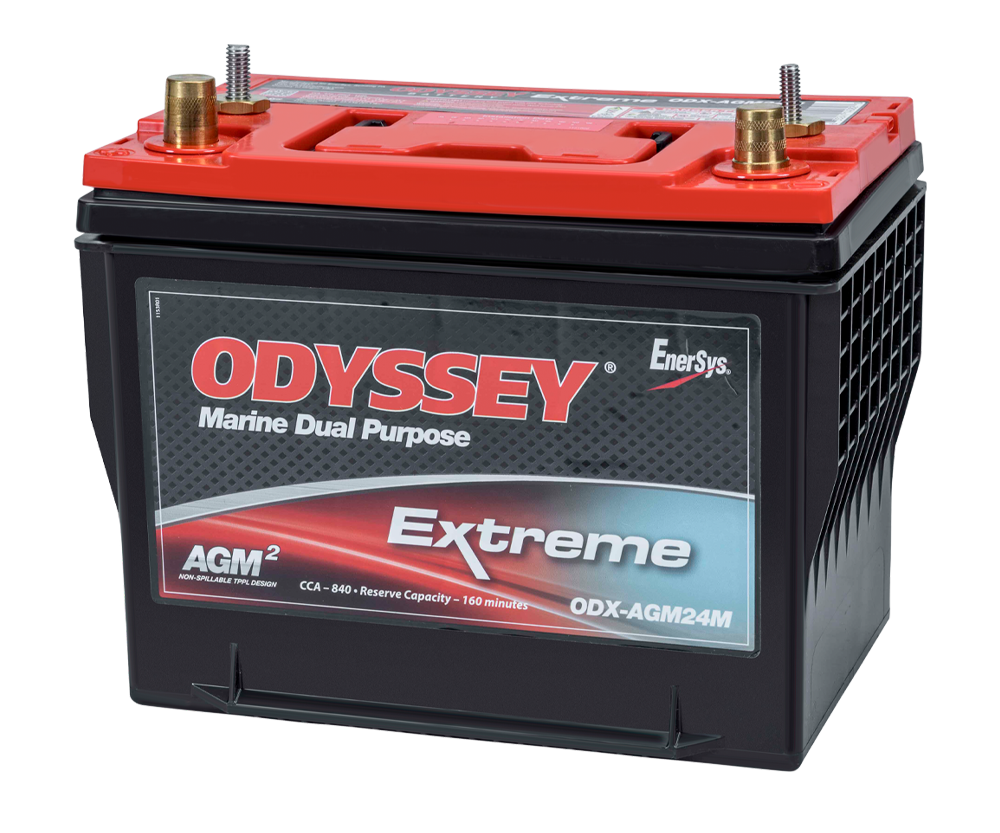

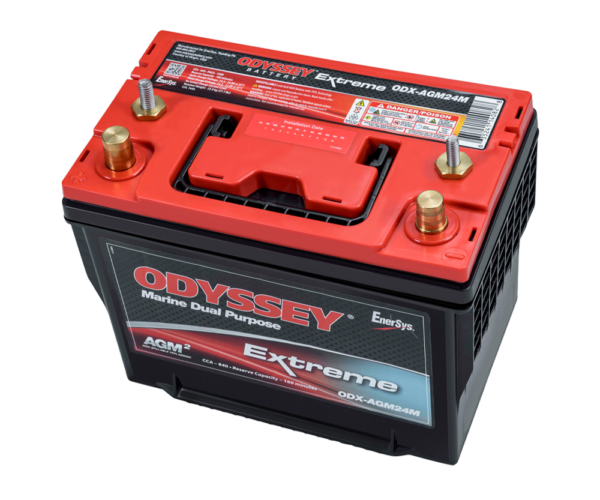

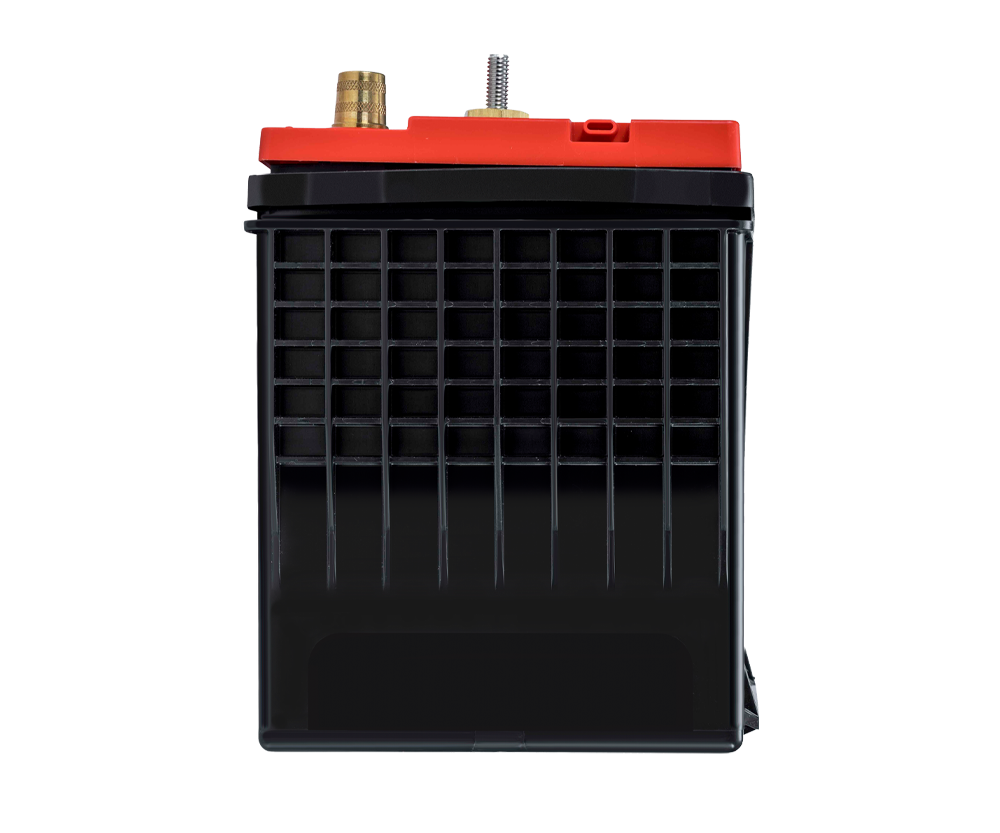

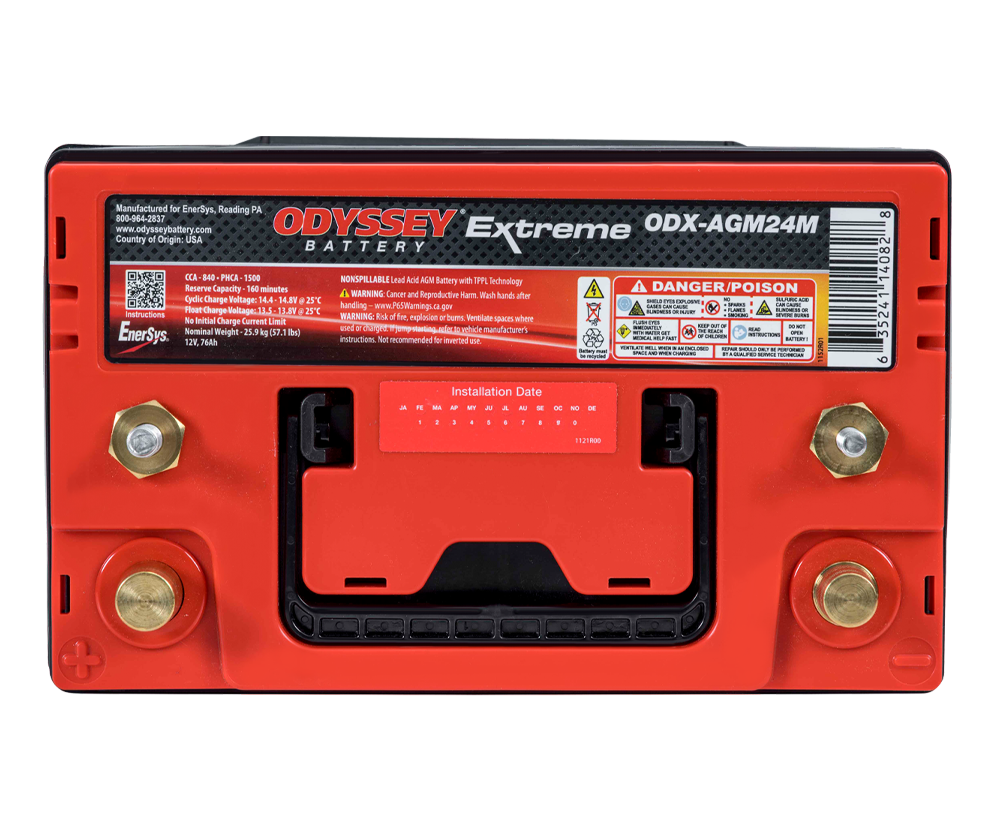

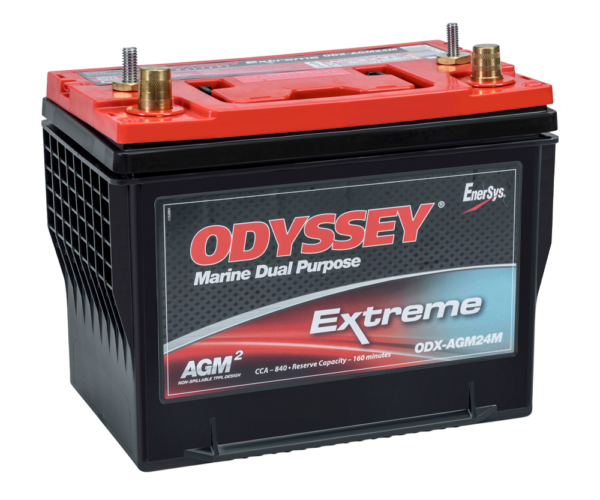

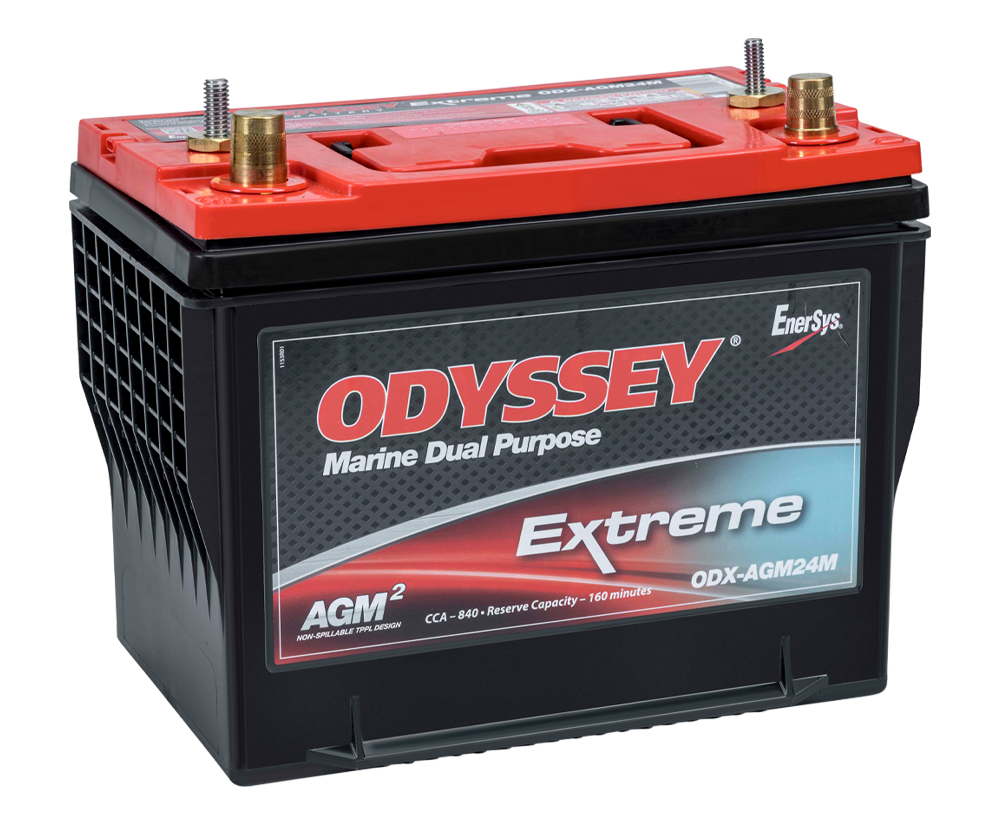

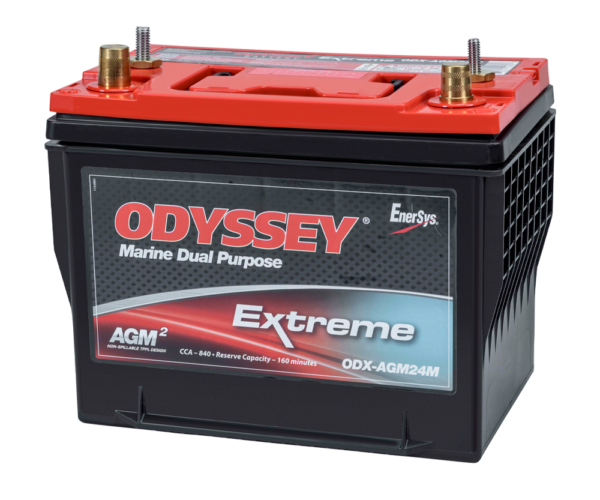

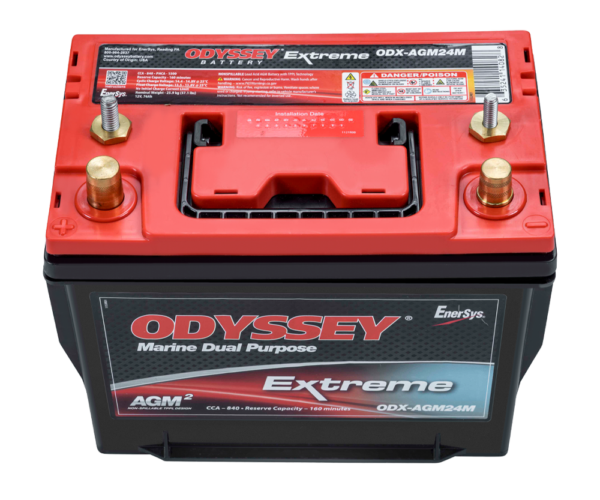

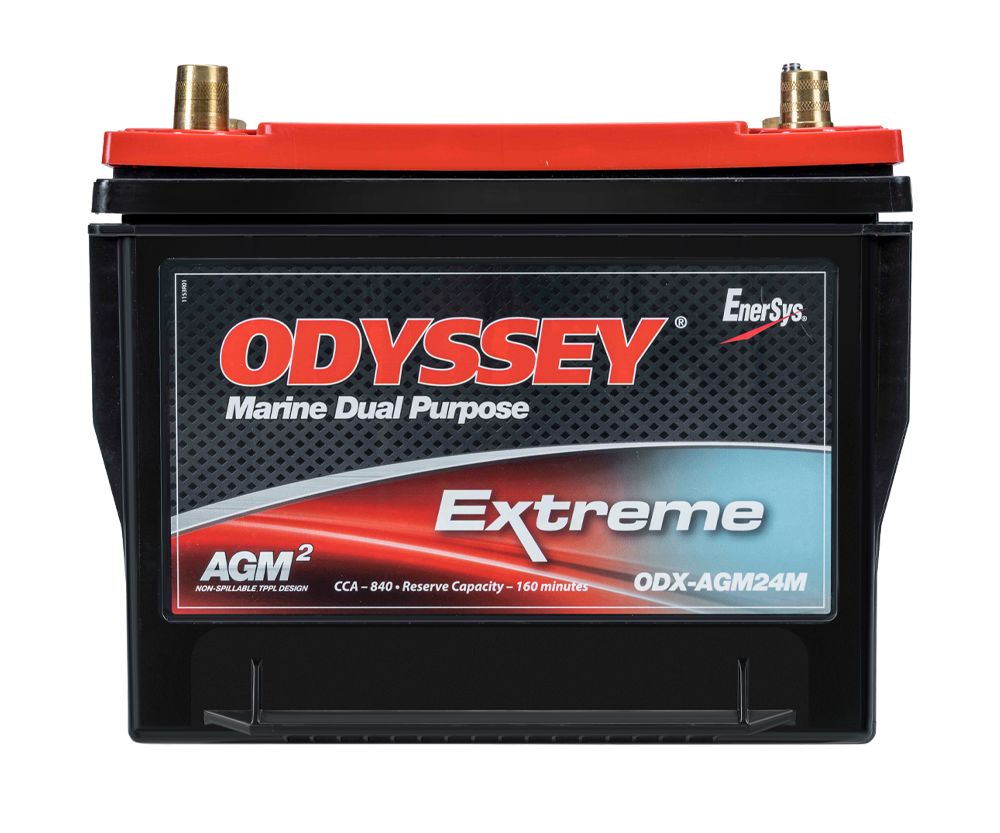

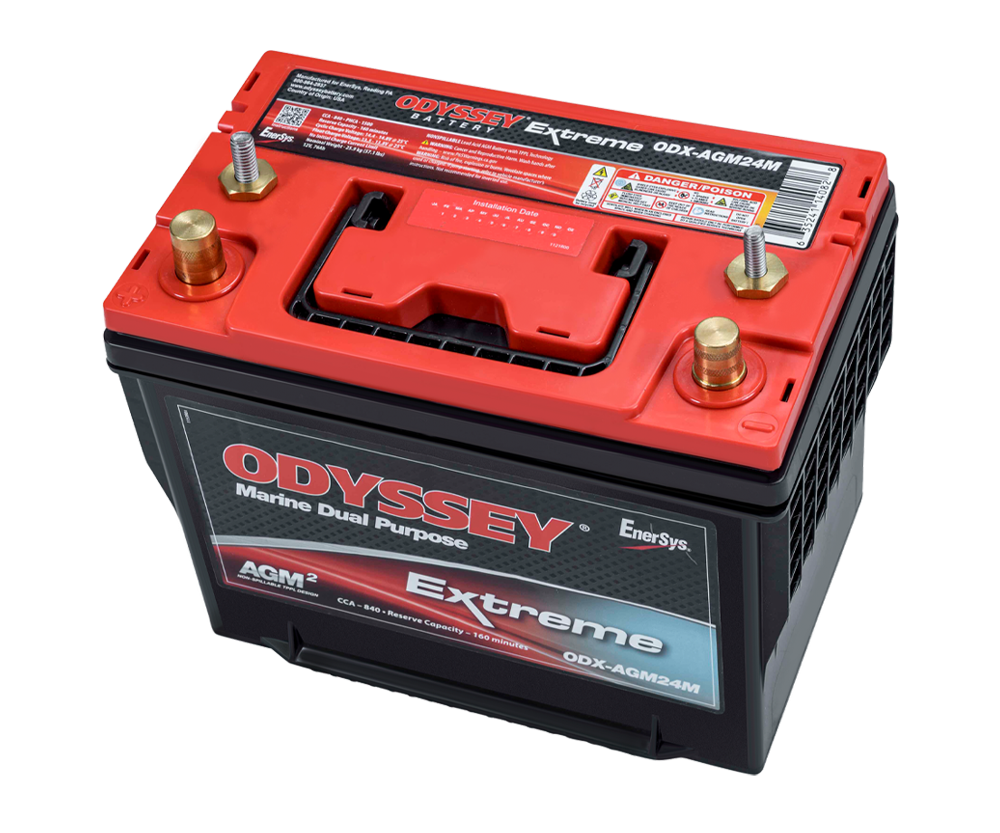

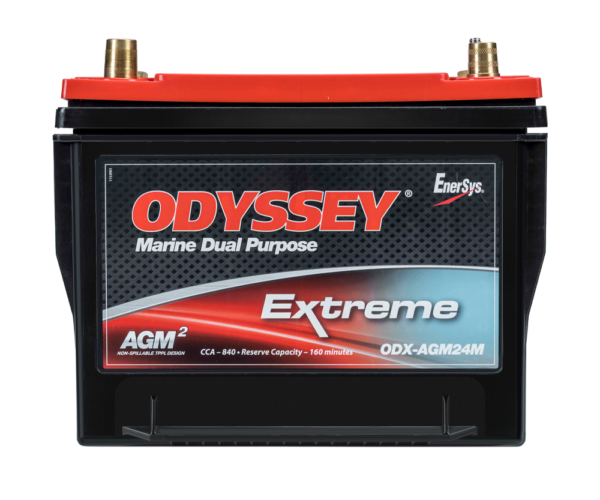

ODYSSEY Extreme Battery

ODX-AGM24M

(NSB-AGM24M)

NorthStar marine batteries excel at providing high vibration resistance, with the high cranking amps and reserve capacity that watercraft demand.

  • Pure lead AGM technology delivers exceptional CCA ratings and reserve capacity cycling ability
  • Quick starting every time
  • Cycles over 900 times at 50% depth of discharge
  • Faster recharge than conventional batteries
  • Proudly made in the USA at our state-of-the-art battery plant
  • OEM fit is ensured – built to exact BCI standards
  • Housed in advanced plastics for durability performance and heat resistance
  • Advanced AGM construction means no water levels to check or terminals to clean
  • Approved as non-hazardous cargo for ground sea and air transport DOT 49CFR173.159(d), (i) and (ii)
SAE Metric

Dimensions

Length 10.9 in
Width 6.8 in
Height (terminals included) 8.8 in
Height (container) 8.2 in
Weight 57.1 lbs

Specifications

12

1500

1400

1225

840

1200

1000

76

73

160

SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.)

200 (22.6)/100 (11.3) studs only

3

3100

7.3

-40°F / -40°C to 176°F / +80°C

68°F / +20°C

635241140828
