ODYSSEY Performance Battery

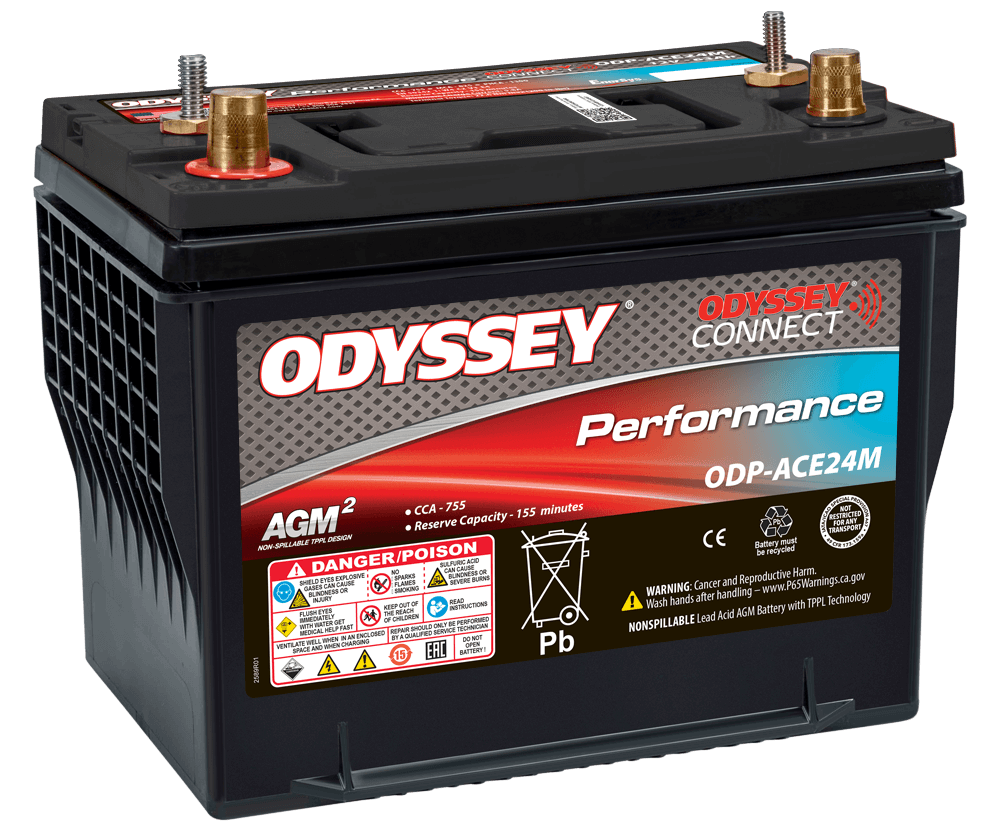

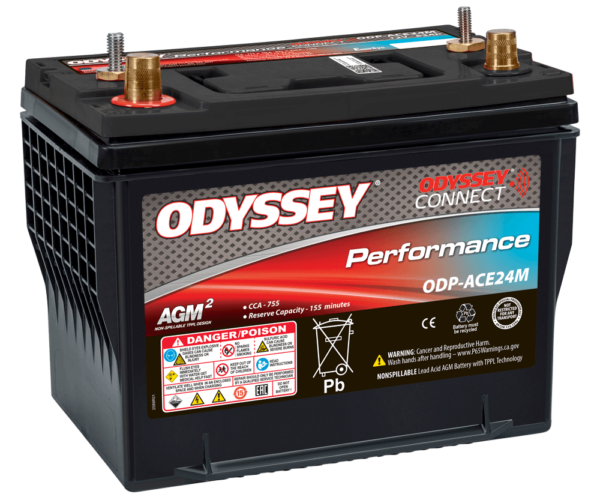

ODP-ACE24M

If you’re looking for the power of an ODYSSEY battery with smart technology for your boat or RV application, look no further than the ODYSSEY ODP-ACE24M battery with the ODYSSEY Connect battery monitoring system. Manufactured with 99% Thin Plate Pure Lead (TPPL) technology and an Absorbed Glass Mat (AGM) design, the ODYSSEY ODP-ACE24M provides massive starting and amazing deep cycling capability – up to 400 cycles at 80% depth of discharge.

The ODYSSEY Connect battery monitoring system consists of patented microchip technology that monitors battery State of Charge (SOC), State of Health (SOH) and voltage and temperature. Users can view warnings and safety notifications via Bluetooth^® on their Apple^® or Android™ smart device, and can also review battery trends to spot performance anomalies.

SAE Metric

Dimensions

Length	10.9 in
Width	6.8 in
Height (terminals included)	8.8 in
Height (container)	8.2 in
Weight	51.4 lbs

Specifications

Voltage

Pulse (5 second) Hot Cranking Amps (PHCA)

1300

MHPCA

1225

MPCA

1025

Cold Cranking Amps (CCA)

755

HCA

950

MCA

825

20Hr Nominal Capacity (Ah)

10Hr Nominal Capacity (Ah)

Reserve Capacity Minutes

155

Terminal

SAE and 3/8-16” Stud (Pos.), 5/16-18” Stud (Neg.)

Torque Spec in-lbs (Nm max)

200 (22.6)/100 (11.3) studs only

Internal Resistance (mΩ)

4.2

Short Circuit (A)

2150

Recommended Min. Charging Current (A)

5.8

Operating Temperature Range

-40°F / -40°C to 140°F / +60°C

Optimum Storage Temperature

68°F / +20°C

UPC	635241140651
